- Product features

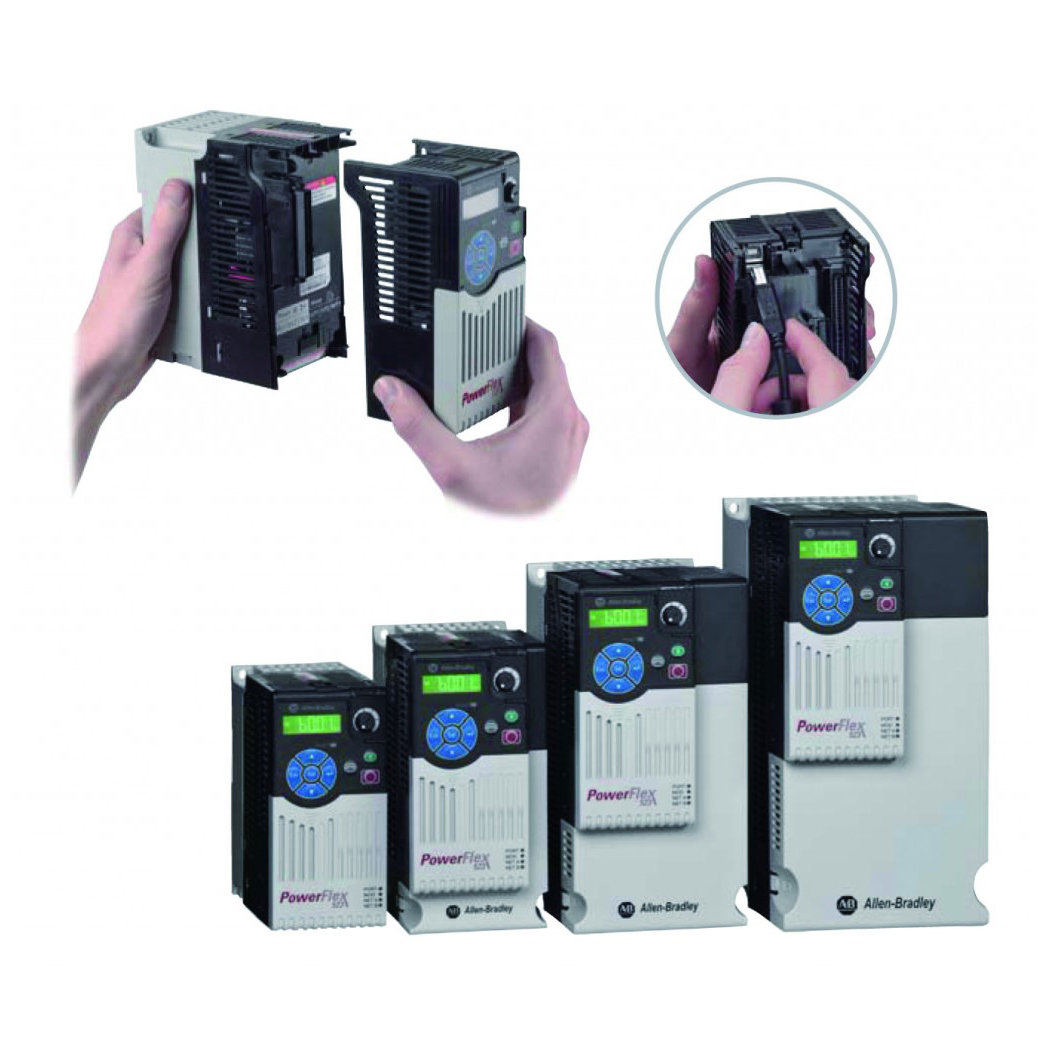

PowerFlex 523 drives can be wired independently and installed at the same time.
Detachable to perform software setup
It consists of two modules.
Thanks to this innovative design, during control module configuration
The power module can be installed, speeding up installation.
The same control module covers the entire capacity range of the PowerFlex 523 drive.
It can be accommodated, allowing for flexible installation and reduced stock parts.
▶ Provides low-cost network RS485/DSI port
▶ Upload/Download setting file using USB port
▶ Helps reduce energy and is low cost/high efficiency
Product Selection
| Catalog Number | Description | |
|---|---|---|
| 25A-A011N104 | PowerFlex 523 AC Drive, 240 VAC, 1 Phase, 3 HP, 2.2 kW Normal Duty; 3 HP, 2.2 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter | |
| 25A-A011N114 | PowerFlex 523 AC Drive, 240 VAC, 1 Phase, 3 HP, 2.2 kW Normal Duty; 3 HP, 2.2 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, Filter | |
| 25A-A1P6N104 | PowerFlex 523 AC Drive, 240 VAC, 1 Phase, 0.25 HP, 0.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter | |
| 25A-A1P6N114 | PowerFlex 523 AC Drive, 240 VAC, 1 Phase, 0.25 HP, 0.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter | |
| 25A-A2P5N104 | PowerFlex 523 AC Drive, 240 VAC, 1 Phase, 0.5 HP, 0.4 kW Normal Duty; 0.5 HP, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter | |
| 25A-A2P5N114 | PowerFlex 523 AC Drive, 240 VAC, 1 Phase, 0.5 HP, 0.4 kW Normal Duty; 0.5 HP, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter | |
| 25A-A4P8N104 | PowerFlex 523 AC Drive, 240 VAC, 1 Phase, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter | |
| 25A-A4P8N114 | PowerFlex 523 AC Drive, 240 VAC, 1 Phase, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter | |
| 25A-A8P0N104 | PowerFlex 523 AC Drive, 240 VAC, 1 Phase, 2 HP, 1.5 kW Normal Duty; 2 HP, 1.5 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter | |
| 25A-A8P0N114 | PowerFlex 523 AC Drive, 240 VAC, 1 Phase, 2 HP, 1.5 kW Normal Duty; 2 HP, 1.5 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, Filter | |
| 25A-B011N104 | PowerFlex 523 AC Drive, 240 VAC, 3 Phase, 3 HP, 2.2 kW Normal Duty; 3 HP, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter | |
| 25A-B017N104 | PowerFlex 523 AC Drive, 240 VAC, 3 Phase, 5 HP, 4 kW Normal Duty; 5 HP, 4 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter | |
| 25A-B024N104 | PowerFlex 523 AC Drive, 240 VAC, 3 Phase, 7.5 HP, 5.5 kW Normal Duty; 7.5 HP, 5.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter | |
| 25A-B032N104 | PowerFlex 523 AC Drive, 240 VAC, 3 Phase, 10 HP, 7.5 kW Normal Duty; 10 HP, 7.5 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter | |
| 25A-B048N104 | PowerFlex 523 AC Drive, 240 VAC, 3 Phase, 15 HP, 11 kW Normal Duty; 10 HP, 7.5 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, No Filter | |
| 25A-B062N104 | PowerFlex 523 AC Drive, 240 VAC, 3 Phase, 20 HP, 15 kW Normal Duty; 15 HP, 11 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, No Filter | |
| 25A-B1P6N104 | PowerFlex 523 AC Drive, 240 VAC, 3 Phase, 0.25 HP, 0.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter | |
| 25A-B2P5N104 | PowerFlex 523 AC Drive, 240 VAC, 3 Phase, 0.5 HP, 0.4 kW Normal Duty; 0.5 HP, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter | |
| 25A-B5P0N104 | PowerFlex 523 AC Drive, 240 VAC, 3 Phase, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter | |
| 25A-B8P0N104 | PowerFlex 523 AC Drive, 240 VAC, 3 Phase, 2 HP, 1.5 kW Normal Duty; 2 HP, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter | |
| 25A-D010N104 | PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 5 HP, 4 kW Normal Duty; 5 HP, 4 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter | |
| 25A-D010N114 | PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 5 HP, 4 kW Normal Duty; 5 HP, 4 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, Filter | |
| 25A-D013N104 | PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 7.5 HP, 5.5 kW Normal Duty; 7.5 HP, 5.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter | |
| 25A-D013N114 | PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 7.5 HP, 5.5 kW Normal Duty; 7.5 HP, 5.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, Filter | |
| 25A-D017N104 | PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 10 HP, 7.5 kW Normal Duty; 10 HP, 7.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter | |
| 25A-D017N114 | PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 10 HP, 7.5 kW Normal Duty; 10 HP, 7.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, Filter | |
| 25A-D024N104 | PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 15 HP, 11 kW Normal Duty; 15 HP, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter | |
| 25A-D024N114 | PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 15 HP, 11 kW Normal Duty; 15 HP, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, Filter | |
| 25A-D030N104 | PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 20 HP, 15 kW Normal Duty; 15 HP, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter | |
| 25A-D030N114 | PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 20 HP, 15 kW Normal Duty; 15 HP, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, Filter | |
| 25A-D037N114 | PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 25 HP, 18.5 kW Normal Duty; 20 HP, 15 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, Filter | |
| 25A-D043N114 | PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 30 HP, 22 kW Normal Duty; 25 HP, 18.5 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, Filter | |
| 25A-D1P4N104 | PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 0.5 HP, 0.4 kW Normal Duty; 0.5 HP, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter | |
| 25A-D1P4N114 | PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 0.5 HP, 0.4 kW Normal Duty; 0.5 HP, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter | |
| 25A-D2P3N104 | PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter | |
| 25A-D2P3N114 | PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter | |
| 25A-D4P0N104 | PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 2 HP, 1.5 kW Normal Duty; 2 HP, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter | |
| 25A-D4P0N114 | PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 2 HP, 1.5 kW Normal Duty; 2 HP, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter | |
| 25A-D6P0N104 | PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 3 HP, 2.2 kW Normal Duty; 3 HP, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter | |
| 25A-D6P0N114 | PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 3 HP, 2.2 kW Normal Duty; 3 HP, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter | |
| 25A-E012N104 | PowerFlex 523 AC Drive, 600 VAC, 3 Phase, 10 HP, 7.5 kW Normal Duty; 10 HP, 7.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter | |
| 25A-E019N104 | PowerFlex 523 AC Drive, 600 VAC, 3 Phase, 15 HP, 11 kW Normal Duty; 15 HP, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter | |
| 25A-E022N104 | PowerFlex 523 AC Drive, 600 VAC, 3 Phase, 20 HP, 15 kW Normal Duty; 15 HP, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter | |
| 25A-E027N104 | PowerFlex 523 AC Drive, 600 VAC, 3 Phase, 25 HP, 18.5 kW Normal Duty; 20 HP, 15 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, No Filter | |
| 25A-E032N104 | PowerFlex 523 AC Drive, 600 VAC, 3 Phase, 30 HP, 22 kW Normal Duty; 25 HP, 18.5 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, No Filter | |
| 25A-E0P9N104 | PowerFlex 523 AC Drive, 600 VAC, 3 Phase, 0.5 HP, 0.4 kW Normal Duty; 0.5 HP, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter | |
| 25A-E1P7N104 | PowerFlex 523 AC Drive, 600 VAC, 3 Phase, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter | |
| 25A-E3P0N104 | PowerFlex 523 AC Drive, 600 VAC, 3 Phase, 2 HP, 1.5 kW Normal Duty; 2 HP, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter | |
| 25A-E4P2N104 | PowerFlex 523 AC Drive, 600 VAC, 3 Phase, 3 HP, 2.2 kW Normal Duty; 3 HP, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter | |
| 25A-E6P6N104 | PowerFlex 523 AC Drive, 600 VAC, 3 Phase, 5 HP, 4 kW Normal Duty; 5 HP, 4 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter | |
| 25A-E9P9N104 | PowerFlex 523 AC Drive, 600 VAC, 3 Phase, 7.5 HP, 5.5 kW Normal Duty; 7.5 HP, 5.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter | |
| 25A-V1P6N104 | PowerFlex 523 AC Drive, 120 VAC, 1 Phase, 0.25 HP, 0.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter | |
| 25A-V2P5N104 | PowerFlex 523 AC Drive, 120 VAC, 1 Phase, 0.5 HP, 0.4 kW Normal Duty; 0.5 HP, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter | |
| 25A-V4P8N104 | PowerFlex 523 AC Drive, 120 VAC, 1 Phase, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter | |
| 25A-V6P0N104 | PowerFlex 523 AC Drive, 120 VAC, 1 Phase, 1.5 HP, 1.1 kW Normal Duty; 1.5 HP, 1.1 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter |
===========================================================================================================================================
